石英晶体谐振器

2.0×1.6×0.50mm SMD Seam Sealing Crystals / 3D Series
浏览次数:854 日期:2015年05月19日 17:23【返回目录】

Features 特点
.Extremely small SMD type crystal units.
.High precision and high frequency stability.
.Excellent heat resistance and environmental characteristics.
.Applications in PDA, DSC, DVC, PC, etc.
.RoHS Compliant / Pb Free.

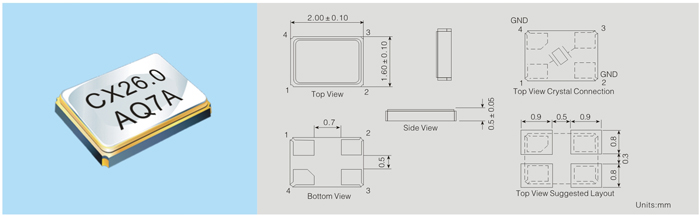

Dimensions 外型尺寸
Electrical Specifications 电气参数
Item / Type3D
Frequency Range16 ~ 54 MHz
Frequency Tolerance (at 25 ℃)± 10 ppm, or specify
Frequency Stability Over Operating Temperature Range± 10 ppm, or specify
Operating Temperature Range-20 ~ +75 ℃, or specify
Shunt Capacitance (C0)3 pF Max.
Drive Level1 ~ 200 μW (50 μW typical)
Load Capacitance8pF,10pF,12pF,or specify
Aging (at 25℃)± 3 ppm / year Max.
Storage Temperature Range- 40 ~ + 85 ℃
Equivalent Series Resistance(ESR) 等效电阻
Fundamental
16 ~ 20 MHz200 Ω Max.
20 ~ 30 MHz 100 Ω Max.
30 ~ 54 MHz 80 Ω Max.
Reflow Condition 回流焊条件
Packing 包装(EIA-481-2)
